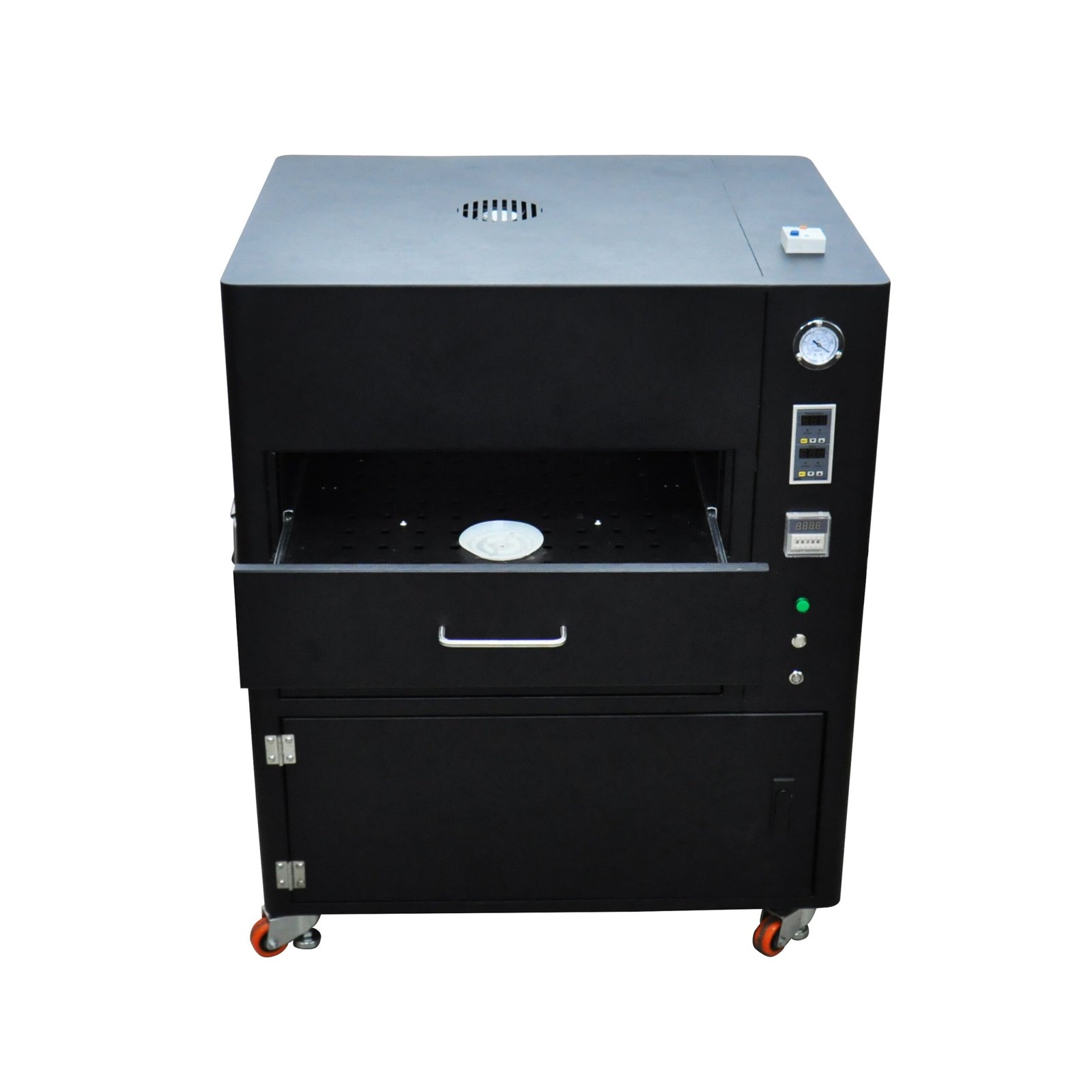

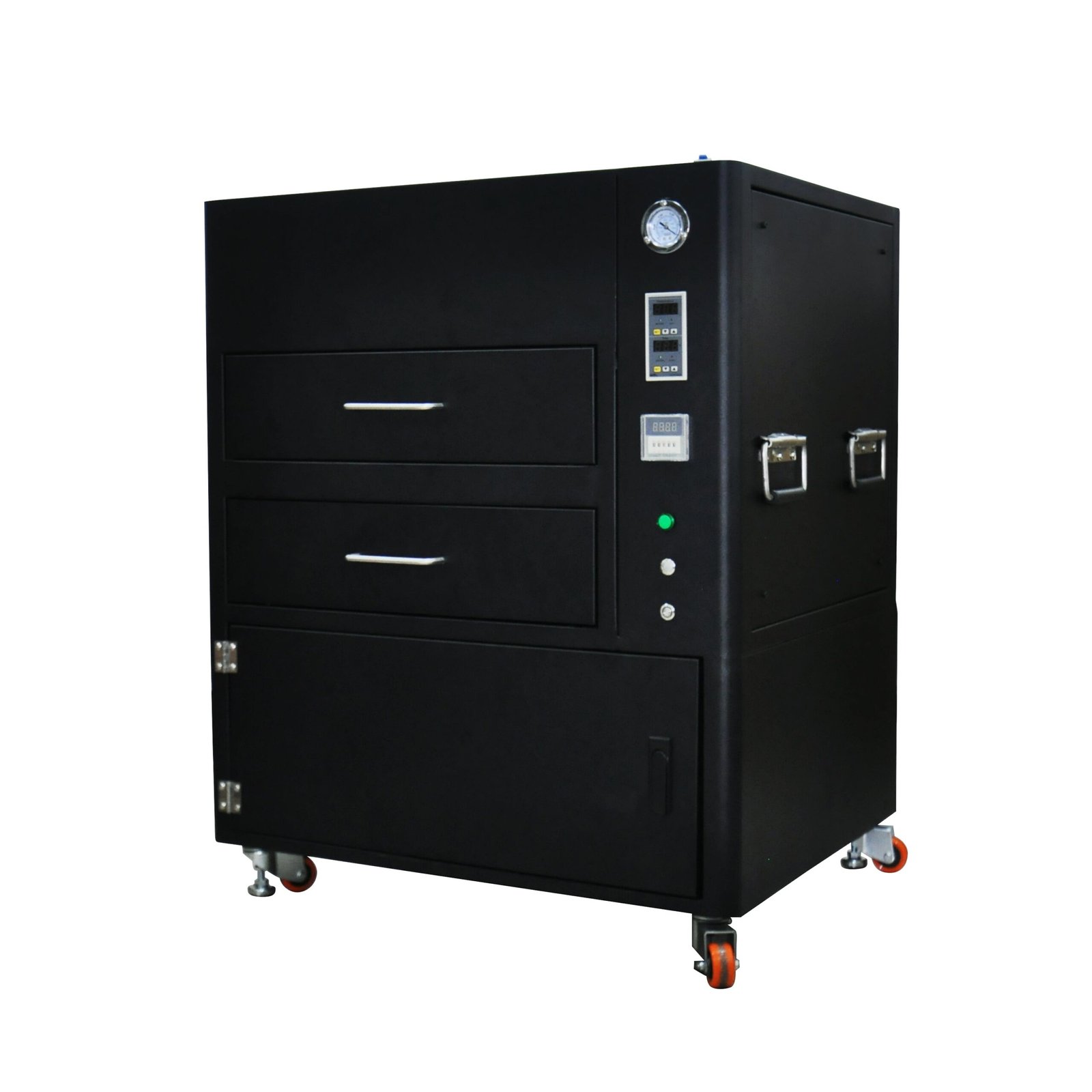

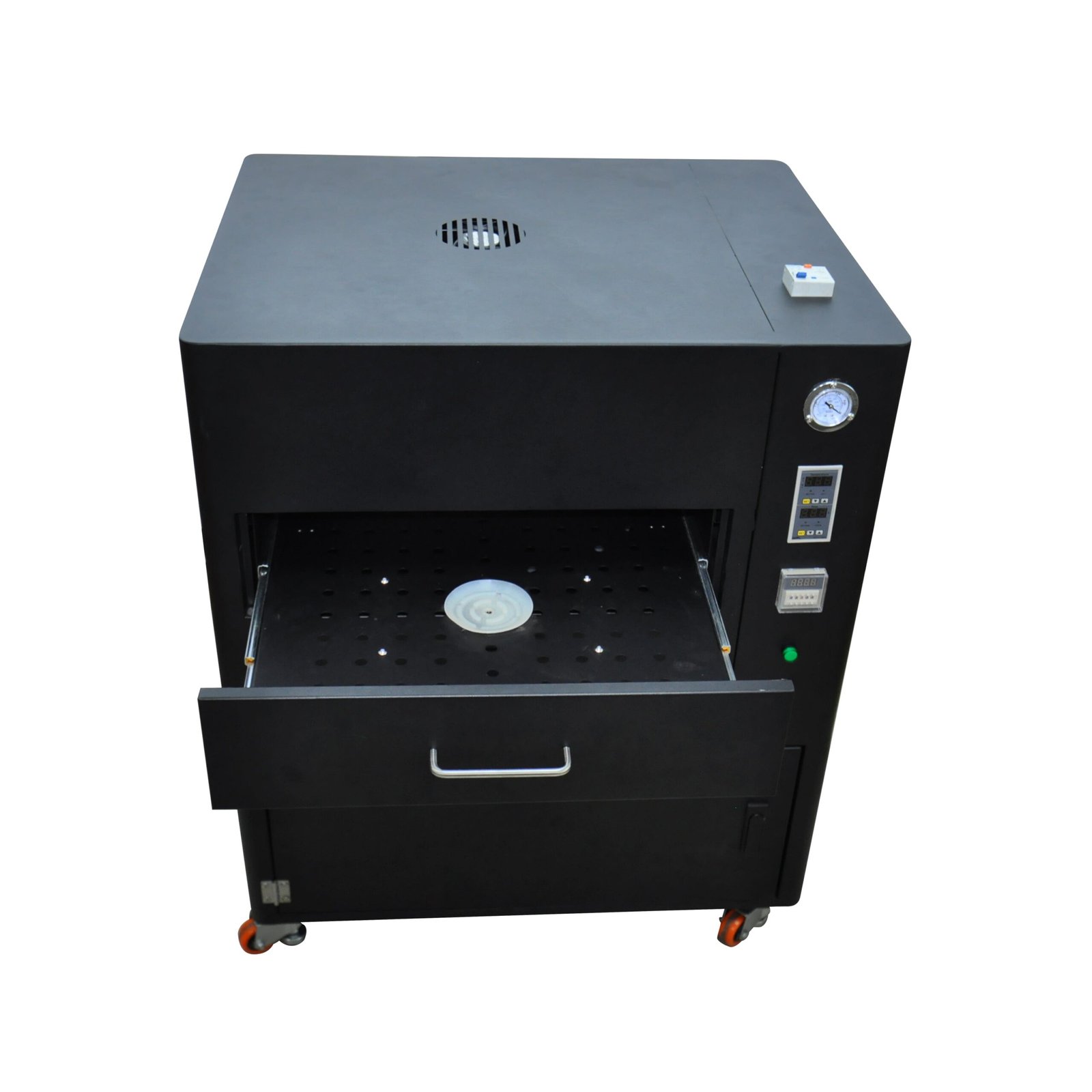

Two Layer A3 Size Sublimation Machine PY51
A3 size Vacuum Sublimation Machine PY51 for Case Printing
Item No.: PY51
Plate Type: Flatbed Printer
Certification: CE/SGS
Usage: Coated case printing
Automatic Grade: Semi-Automatic
Voltage: 220V
Dimensions(L*W*H): 830*760*1260 mm
Weight: 191KG
Warranty: 1 Year
Application: Coated Phone Case/ Keycaps/ Airpod Case Printing with Film
Description
3D Sublimation Printing Process:
1. Make your design on the computer. Print it to the 3D sublimation film using low-temperature sublimation ink on an Epson printer(ICC control color);
2. Dry the printed film in an oven machine for about 15 mins at 30 degrees;
3. Put the 3D blank case upon the preheated jig, put the sublimation film onto the tray, close the tray and lock it;
4. Start to sublimate at about 140 degrees & 8 mins;
5. Done, remove the sublimation film and phone cover.
